About the B-2 Plus

A pocket-size 2.4GHz wireless system that offers guitar players an easy solution to go wireless. Step on the latest NUX wireless transmission algorithm, B-2 PLUS secures a better connection in a noisy RF environment.

True Wireless Freedom

Enjoy up to ~60 ft / 15 m of line-of-sight range so you can move freely on stage or in your venue.

Crystal-Clear Audio

32-bit hi-resolution wireless transmission with < 5 ms latency ensures your sound stays tight and natural.

Reliable Runtime

Get ~7 hours of continuous use per charge on both transmitter and receiver. Auto off function lets you conserve battery when not in use.

The Revolution In Consumer 2.4GHz Guitar Wireless Systems.


To minimize interference, we fine-tuned the 2.4GHz band transmit power and bandwidth so the B-2 Plus can discover the clearest channel.

Better Anti-Interference Ability

Ensuring consistent signal in crowded wireless environments.

Lower Power Consumption

Longer run time at 7 hours compared to comparable wireless systems in the market.

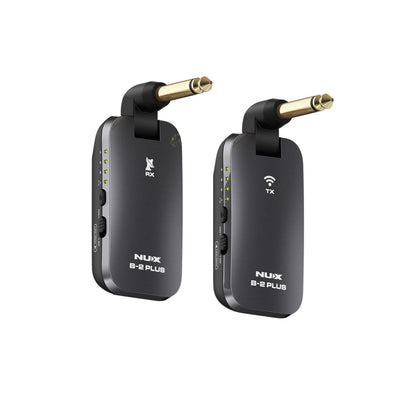

NUX B-2 PLUS wireless guitar transmitter and receiver with plug facing frontward.

Smart Plug-And-Play

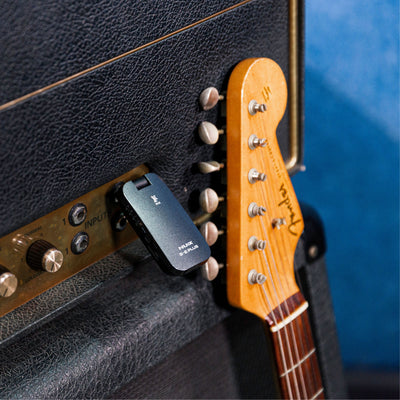

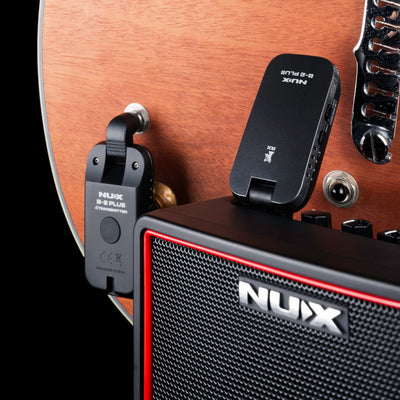

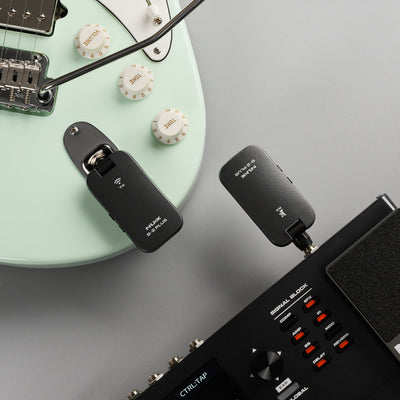

Simply plug the transmitter into your guitar, plug the receiver into your amplifier or effect pedal; turn on both the transmitter and the receiver, and you’re good to go!

Features 4 optional channels lets you use 4 x B-2 Plus at the same time.

Cargar video: NUX B-2 plus plugging into an electric guitar showing how it doesn&#39;t get in the way of the whammy bar when plugged in.

Guitar Friendly Smart Design

B-2 Plus is compatible with most popular guitars. The transmitter plug can be configured downwards for recessed inputs like Stratocasters or other directions for non-recessed inputs like Les Pauls.

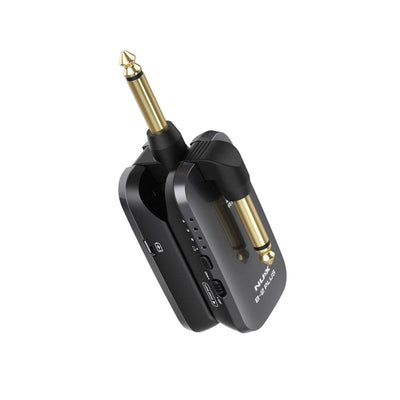

Cargar video: NUX B-2 plus transmitter and receiver clipping into each other back-to-back for easy storage.

Easy-to-Store Buckle Design

Tongue-and-groove buckle clasp design to help avoiding losing the transmitter / receiver.

Just buckle them together when you are not playing the guitar.

Compare NUX Guitar Wireless

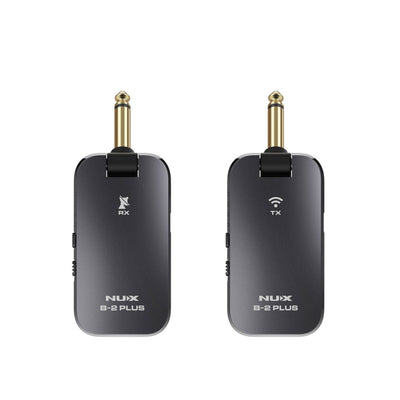

B-2 PLUS wireless guitar transmitter and receiver on white background

B-2 Plus

Better anti-interference + your accessible 32-bit wireless solution.


Frequency Band

2.4 GHz


Range

~60 ft / 15 m


Battery Life

~7 hours


Sampling Rate

32-bit

This Product

NUX B-1 LITE wireless guitar transmitter and receiver on a white background

B-1 Lite

Your perfect bedroom/garage band wireless go-to.


Frequency Band

2.4 GHz


Range

~60 ft / 15 m


Battery Life

~5 hours


Sampling Rate

24-bit

See B-1 Lite

B-2 PLUS wireless guitar transmitter and receiver on white background

C-5RC

Better reliability + great for those who need to play in crowded RF environments.


Frequency Band

5.8 GHz


Range

~100 ft / 30 m (line-of-sight)


Battery Life

~4 hours + Charging Case Included


Sampling Rate

24-bit

See C-5RC

B-2 Plus

Specifications

Technical

Frequency Band
2.4 GHz
Transmission Power
<10 mW EIRP
Audio Quality
32-bit / 44.1 kHz
Range
Up to 60ft / 15m line-of-sight (environment-dependent)
Frequency Response
20 Hz – 20 kHz
Latency
Less than 5ms
THD+ Noise
Less than 0.05% 1 kHz @-10 dbFS

Hardware

Dimensions
2.9" x 1.6" x 2.2" ea
Weight
0.13 lb ea

Documents

User Manuals

What's Included

1 x B-2 Plus Transmitter, 1 x B-2 Plus Receiver, 1 x USB-A to Micro-USB cable, User Manual

FAQs

Resources

Where can I find the user manual for the B-2 Plus?

You can download the user manual for the NUX B-2 Plus through the link below:

NUX B-2 Plus User Manual
