Product Overview
- Pro-Level Amp Modeling with Bias Tweaking.
- 7 Independent moveable signal blocks with Send/Return effect loop.
- Intuitive operation and editor software.
- 1024 samples IR resolution and 3rd party IR loader slot with auto format editor.
- Versatile application scenes with independent 1/4”&XLR IR outs.
- Ultra-low system latency(1.2ms) and premium powerful NXP RT DSP(1GHz).
- Comes with Insert Y-cable for send/return effect loop.
- USB recording interface, firmware update, AmpAcademy™ editor software.
- Ultra-wide dynamic range: 110dB
Pairs well with
Ships within 1-2 business days.
3-Year Warranty
Complimentary shipping & returns
Academia de amplificadores
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Expect delivery within 3-5 business days. Shipping is free for orders over $49.
-
Customer Support
Call us at 626-357-1275
Mondays to Fridays at 9 am - 5 pm PST -
Connect With Us
Email us at hello@nux.us for more in-depth product inquiries, feedback, and more!
-
Resources
For product how-to guides, walkthroughs, user manuals, and software downloads, check out our NUX product support page.

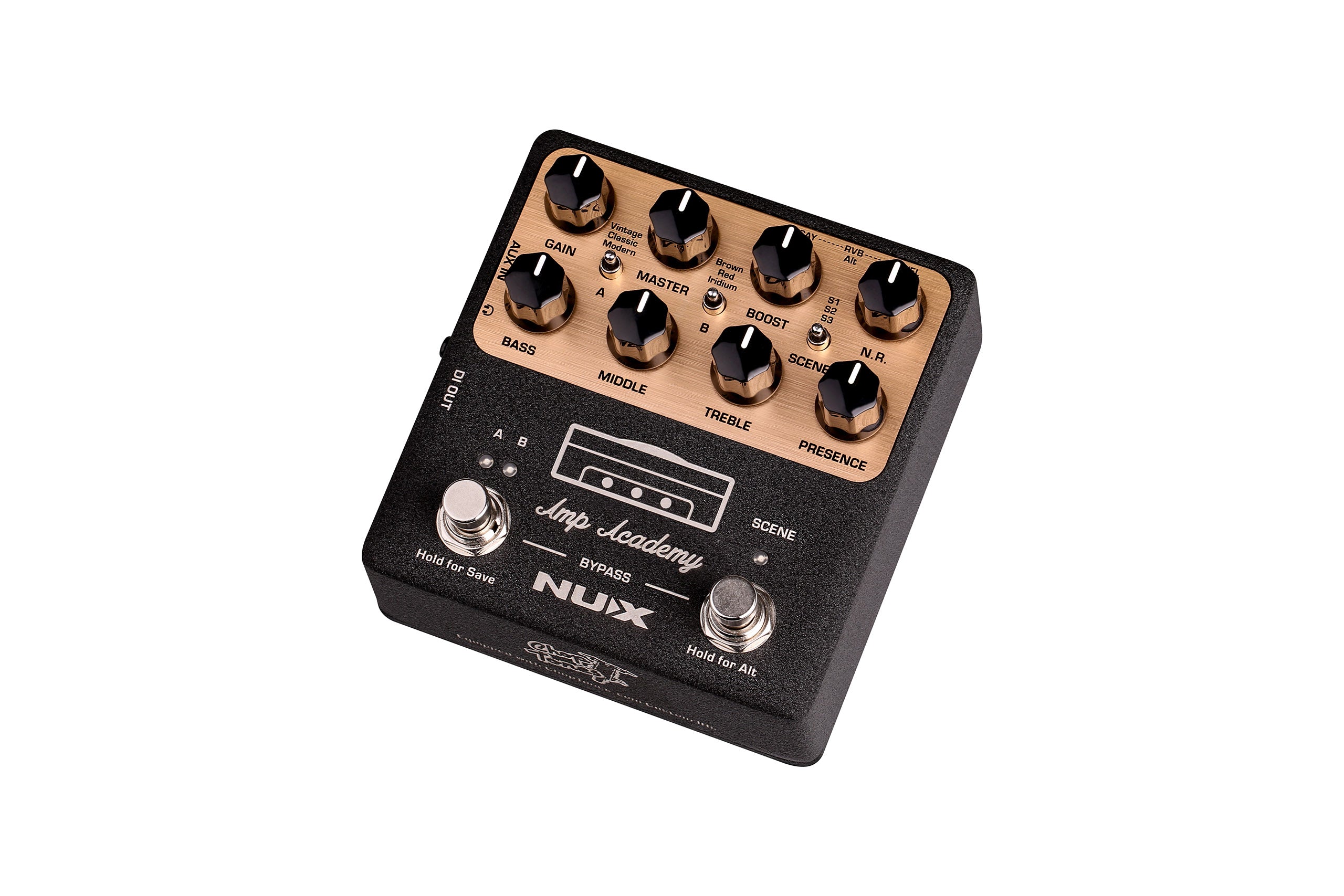

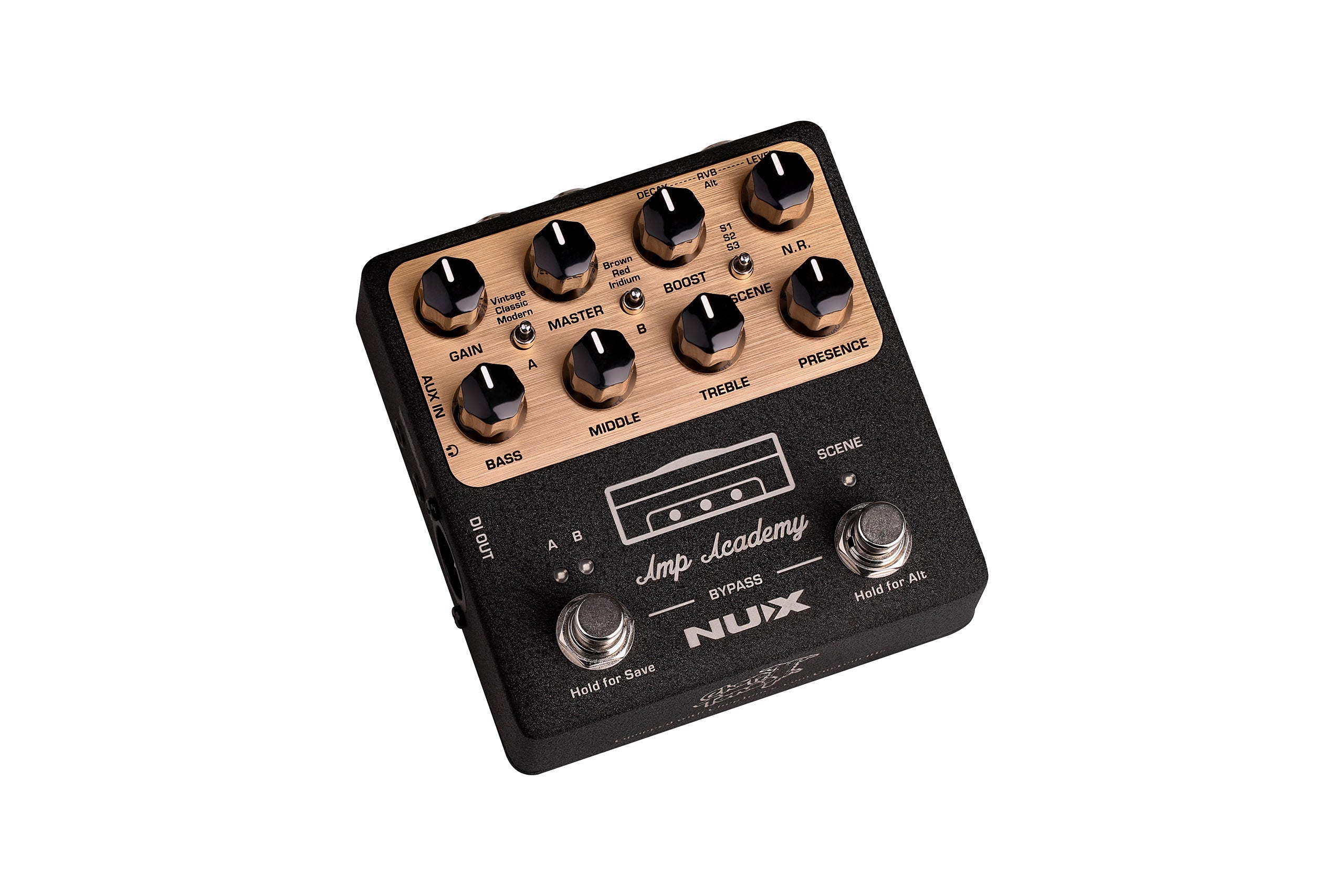

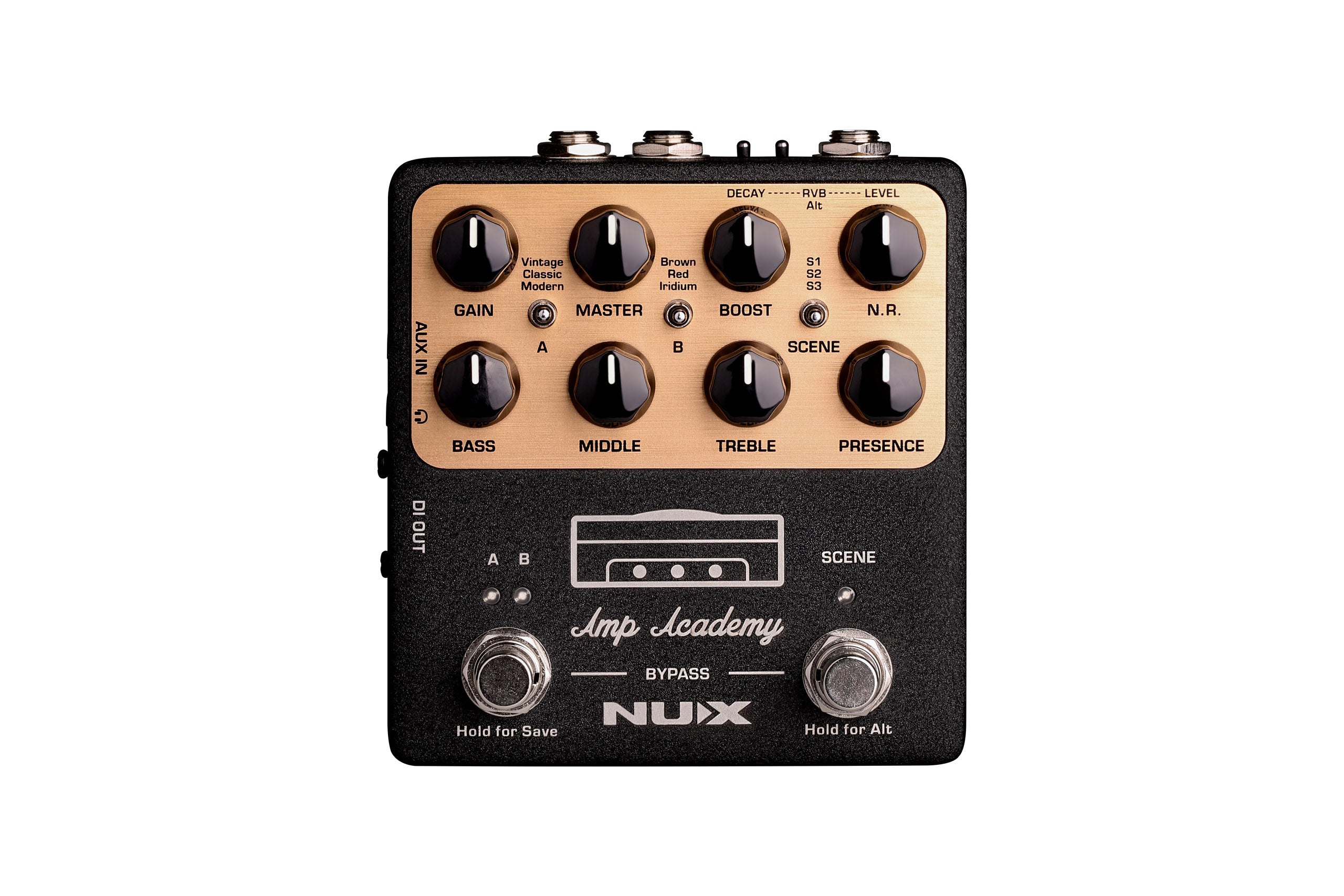

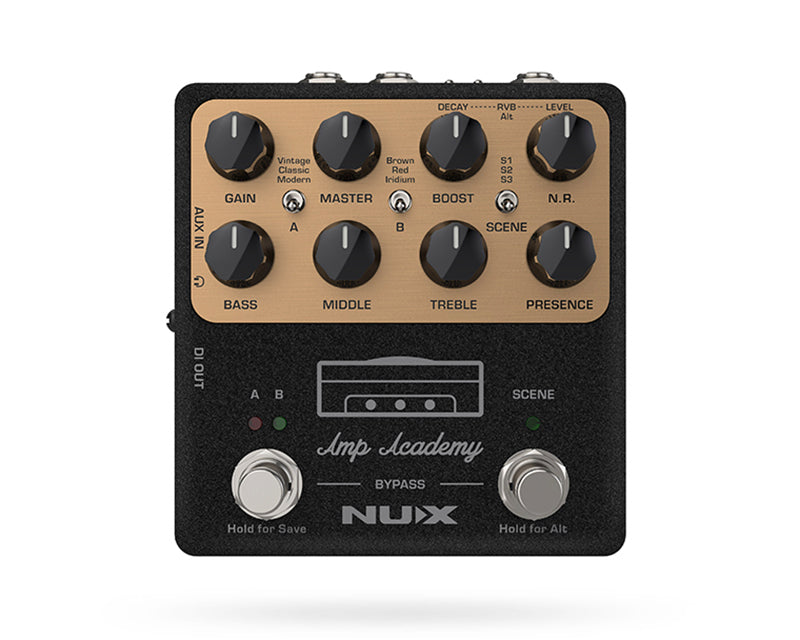

Meet Amp Academy
Your compact, stomp‑box amp modeler that puts world‑class tube‑amp tone and studio‑ready versatility at your feet. Designed for guitarists who want the full power and character of high‑end amps — but with the convenience and flexibility of a pedal. Whether you’re playing live on stage, recording in the studio, or practicing quietly at home, Amp Academy delivers rich, dynamic amp‑and‑cab tones without the hassle of lugging around heavy equipment.
Amp Academy uses the proven TSAC‑2K “white‑box” modeling algorithm to emulate legendary tube amplifiers, packed into a pedal‑sized enclosure with serious headroom and pedal‑friendly dynamics.
The result: authentic, responsive amp feel that integrates smoothly into pedalboards, PA systems, FRFR rigs, or recording setups.
Product Features
Legendary Amp Tone
Six built-in amp models (Vintage, Classic, Modern, Brown, Red, Iridium) deliver rich, dynamic tube-amp feel. Firmware updates expand options up to 18 amps, giving you a huge tonal palette.
Flexible for Any Setting
Gig-ready direct to PA or FRFR speaker, studio-ready via USB audio interface, and home/practice-friendly with headphone output.
All-in-One Effects & Tone Control
Onboard compression, boost/drive, 6-band EQ, multiple reverb types, noise reduction, plus an effects loop for your pedalboard. Two-channel switching with 3 scene presets makes live and studio switching effortless.
Pro-Ready Recording & Workflow
USB interface for recording and streaming, re-amp output for post-production flexibility, IR loader support for custom cab tones, and MIDI/mobile editor compatibility for quick adjustments.
Pedalboard-Friendly Build
Compact and lightweight design, premium components, ultra-low latency (~1.2 ms), and wide dynamic range (110 dB) ensure authentic amp feel and performance reliability.
Specifications
Technical
- Amp Type Digital amp modeler & effects processor
- Modeling Algorithm NUX TSAC-2K (White-box amp modeling)
- Amp Models 6 built-in amp models
- Impulse Response (IR) 1024‑sample IR resolution
- Signal Processing / DSP 48 kHz sampling rate, 32‑bit processing, NXP RT DSP (1 GHz)
- Dynamic Range ~110 dB
- Latency ~1.2 ms system latency
- Input Impedance 1 MΩ
- Output Impedance ~1 kΩ
- Power 9v External AC Adaptor (not included)

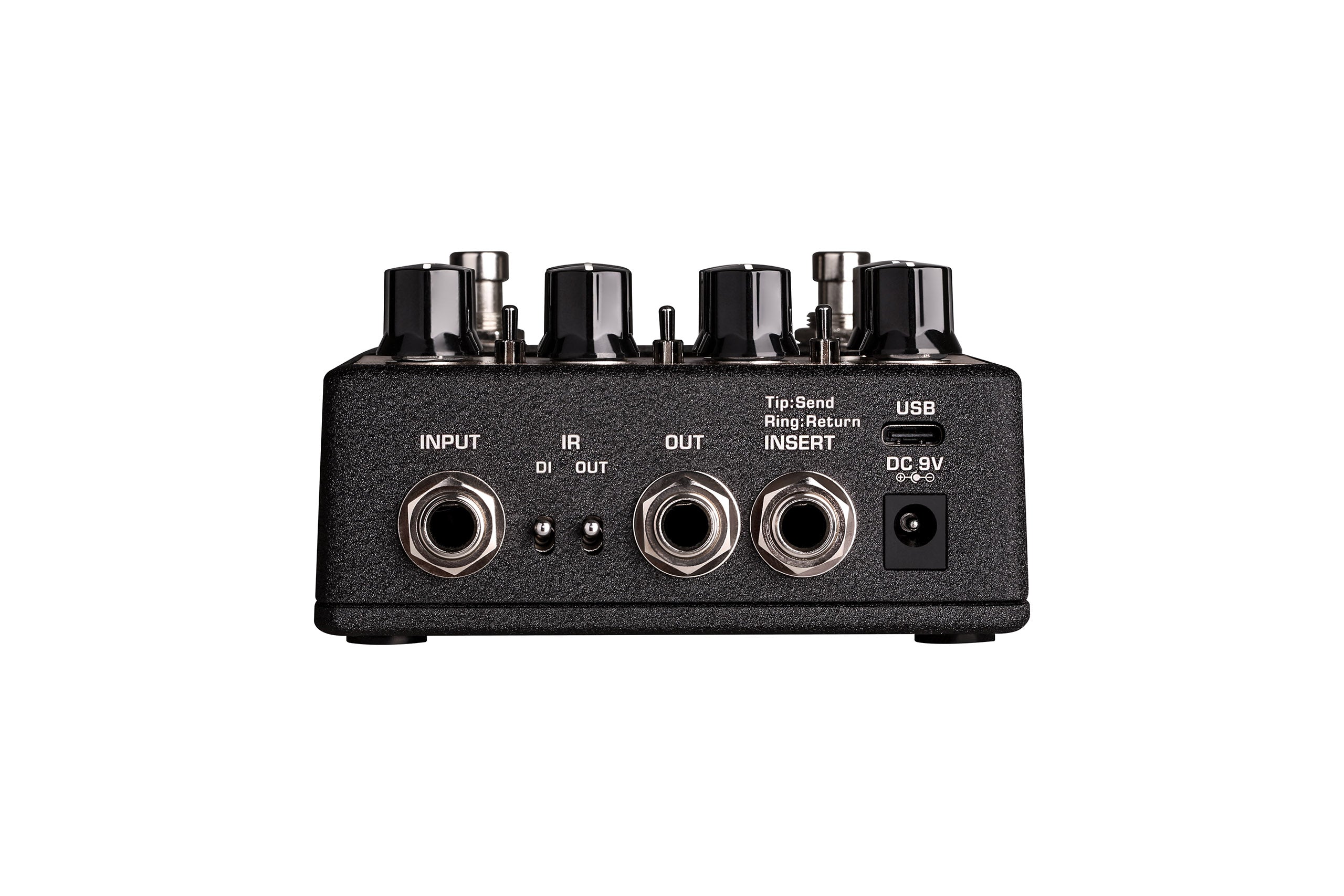

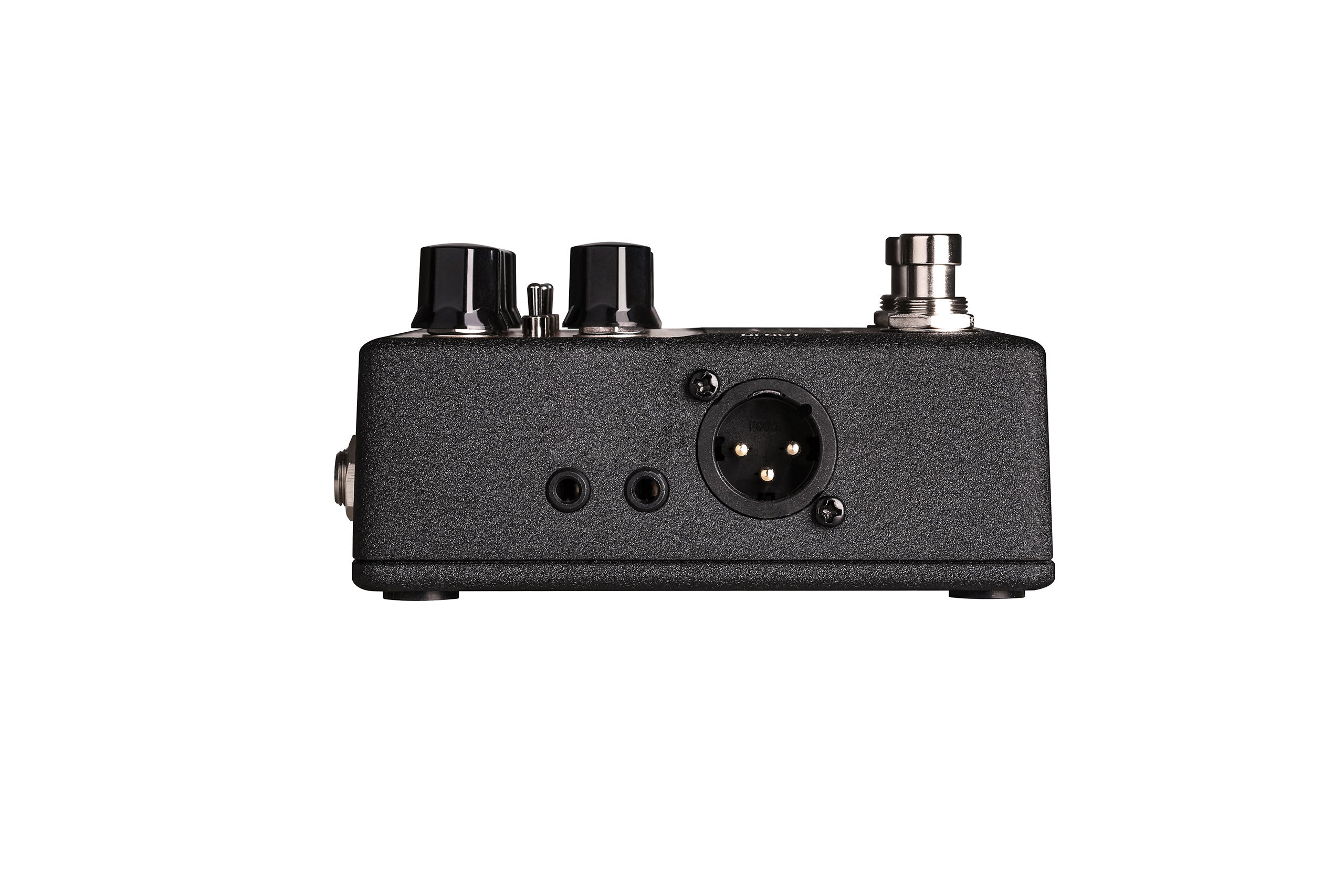

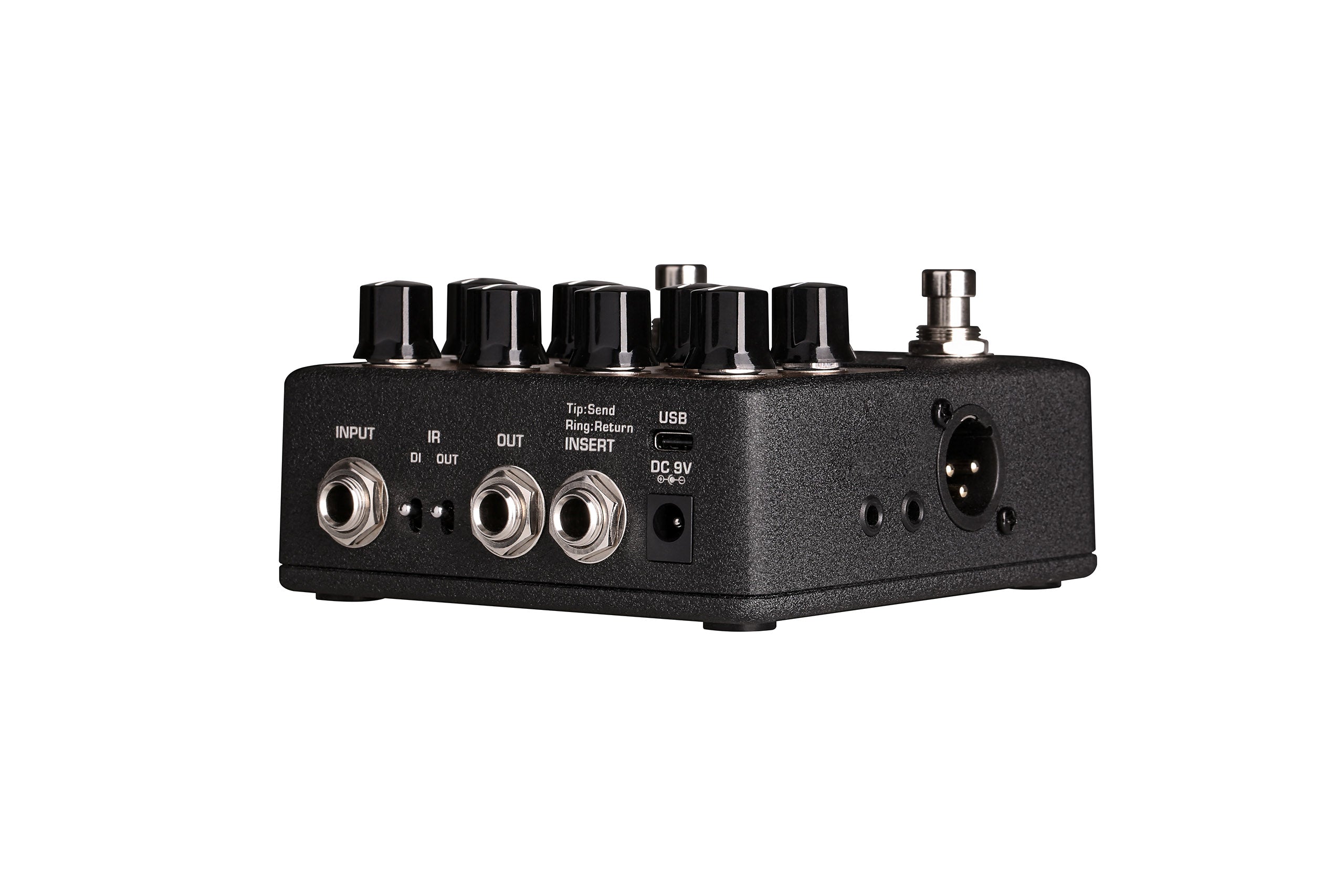

Connectivity
- Input 1/4" (6.35 mm) jack
- Output 1/4" (6.35 mm) jack
- DI Output XLR DI Output
- Headphone Out 1/8' (3.5 mm) jack
- Aux In 1/8' (3.5 mm) jack
Hardware
- Dimensions 4.1 × 4.5 × 2.3 inch
- Weight 1 lb
- Build Material Aluminum die-cast chassis
What's Included
1 x Amp Academy, User Manual
